fMRI Joystick

fMRI joystick

Contact Information
Michele Diaz, SLEIC Director of Human Imaging
mtd143@psu.edu
814-867-2971

Equipment Location
SLEIC 3T MRI Facility
Chandlee Laboratory
University Park, PA 16802

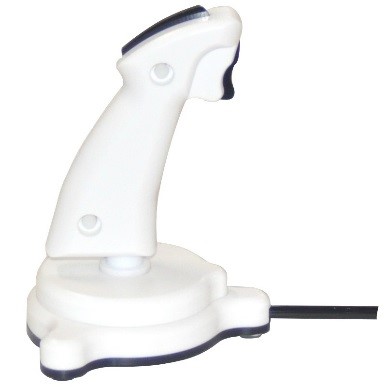

MRI-compatible joystick for fMRI experiments

Uses

  • designed to give a joystick/game controller option for use in fMRI experiments

Specifications

  • Joystick Model No: HH-JOY-4
  • Two-axis continuous pointing device
  • All plastic construction
  • Enumerates as a USB HID gamepad
  • Acts as serial mouse under Windows XP
  • High speed serial mode for demanding applications
  • Angular range: 30 degrees (+/-15 degrees)
  • Highly configurable: Finger actuator vs. Grip actuator (easily removeable grip)
  • Foam inserts provide 3 different return-to-zero forces
  • Dimensions: Overall height: 7.0 in (18 cm)Base enclosure: 7.25 x 4.25 x 2.25 in (19 x 11 x 6 cm)
  • Buttons: Two 0.43 in. colored round buttons around shaft on base
  • Finger stick: 1 x 0.35 in (2.4 x 0.8 cm)
  • Grip 4.5 x 1.25 in (11.5 x 3 cm)
  • 10 foot long fiber pigtailed connector
  • 8-channel (12 fiber) bundle

Details

The fiber optic joystick was purchased from Current Designs.  The fiber optic joystick is constructed of all plastic, working entirely on light. The response device connects to the electronic interface using the removable fiber optic bundle. The complete system includes the joystick, the interface, removable fiber optic bundle, and power supply and computer cables.  The system can also interface with any of the other response box designs available from Current Designs.  For example, SLEIC has also purchased two four-button response boxes from Current Designs, compatible with the same interface as the joystick.
